Torque To Spare

More Places To Use It

The TR series is Bay Shore Systems’ largest and most capable line of foundation drilling rigs. With models offering 15,000 to 300,000 ft-lb of torque, the TR series combines drilling power, engineered stability, and the flexibility to build the rig around the work. Built for deep foundations, large-diameter holes, and demanding ground conditions.

Request A Quote

No Two Jobs

Drill the same

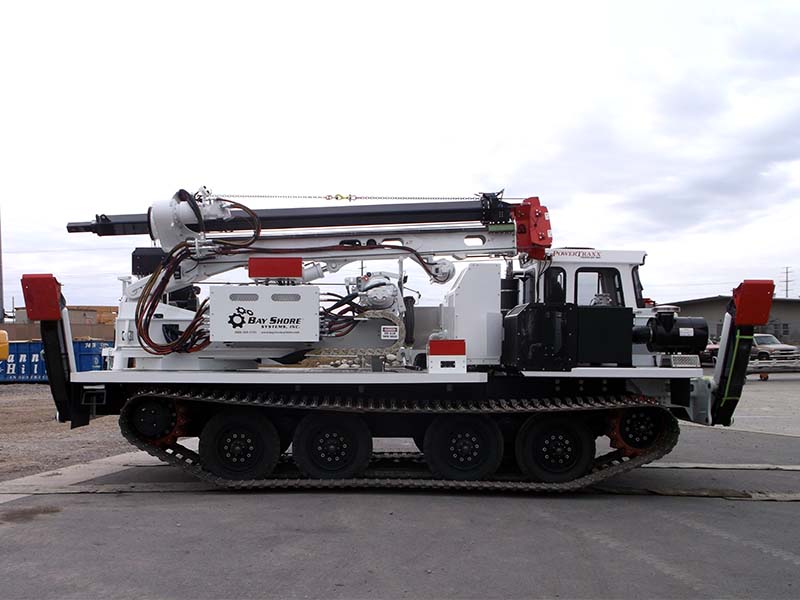

Your rig should fit the work–not the other way around. Every TR is configured around the demands of your jobsites, from carrier and mast to rotary, winch, kelly bars and drilling setup. Short mast or long reach, fixed or expandable undercarriage, wheeled or tracked–we work with you to build a rig that helps your crew drill more efficiently and get more out of every day in the field.

The goal is not size for the sake of size. It is the torque, depth and capacity the work demands.

rotary

Bay Shore designs and builds its rotary gearboxes in-house, with TR torque capacities from 15,000 to 300,000 ft-lb. Match the rotary to the size of the work instead of carrying more machine than the job calls for.

Winch

Match the Kelly winch to the rig and drilling depth, with single-layer line pull up to 50,000 lbs across the TR lineup. The right winch gives the operator the pull needed to bring the Kelly and tooling back out of the hole without oversizing the machine.

Kelly Bars

Choose round-locking or square friction Kelly bars based on drilling depth and ground conditions. Round-locking bars give the operator positive locking points when crowd needs to be transferred through the Kelly; square friction bars provide another way to match the rig to the depth and work.

Mast

Configure the mast around the space above the hole and the depth below it. Longer mast configurations support deeper drilling, while short-mast setups put the rotary to work where power lines, bridges, and other overhead restrictions limit working height.

Carrier

From 8-ton carriers to 50-ton machines, Bay Shore Systems can build on nearly any major manufacturer’s platform. New from the dealer or one from your fleet, we’ll configure the rig around the carrier and the work it needs to do.

TR Series

Drill Rigs

One Rig. More Possibilities.

Each TR model provides a different level of torque, drilling capacity and carrier size. Compare the lineup below to identify the model that best matches your typical hole diameter, drilling depth, and ground conditions.

Don’t know which rig to choose?

Talk to an expert

TR15

excavator

15,000ft-lb
21kN-m

ROTARY TORQUE (MAX)

30ft
9.1m

HOLE DEPTH (MAX)

in
mm

HOLE DIAMETER (MAX)

Rig Details

TR25

excavator

25,000ft-lb
30kN-m

ROTARY TORQUE (MAX)

80ft
24m

HOLE DEPTH (MAX)

48in
1,200mm

HOLE DIAMETER (MAX)

Rig Details

TR50

excavator

50,000ft-lb
70kN-m

ROTARY TORQUE (MAX)

80ft
24m

HOLE DEPTH (MAX)

96in
2,400mm

HOLE DIAMETER (MAX)

Rig Details

TR60

excavator

65,000ft-lb
90kN-m

ROTARY TORQUE (MAX)

80ft
24m

HOLE DEPTH (MAX)

108in
2,700mm

HOLE DIAMETER (MAX)

Rig Details

TR95

excavator

98,000ft-lb
130kN-m

ROTARY TORQUE (MAX)

100ft
30m

HOLE DEPTH (MAX)

132in
3,300mm

HOLE DIAMETER (MAX)

Rig Details

TR110

excavator

110,000ft-lb
150kN-m

ROTARY TORQUE (MAX)

100ft
30m

HOLE DEPTH (MAX)

144in
3,600mm

HOLE DIAMETER (MAX)

Rig Details

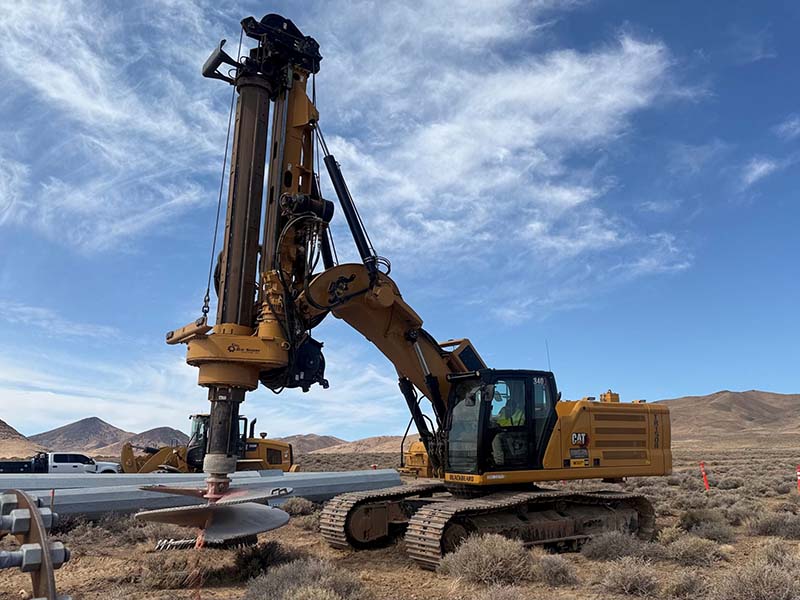

TR150

excavator

150,000ft-lb
200kN-m

ROTARY TORQUE (MAX)

100ft
30m

HOLE DEPTH (MAX)

168in
4,200mm

HOLE DIAMETER (MAX)

Rig Details

TR200

excavator

200,000ft-lb
270kN-m

ROTARY TORQUE (MAX)

100ft
30m

HOLE DEPTH (MAX)

168in
4,200mm

HOLE DIAMETER (MAX)

Rig Details

TR300

excavator

300,000ft-lb
407kN-m

ROTARY TORQUE (MAX)

100ft
30m

HOLE DEPTH (MAX)

192in
4,800mm

HOLE DIAMETER (MAX)

Rig Details

The TR Series is trusted by contractors for real torque, responsive control, and fast adaptability. From drilling rock sockets to working tight access sites–or just powering through another 12 hour shift –TR rigs are built to keep crews drilling day after day.

MORE WAYS

TO BUILD YOUR TR

From downhole visibility and powerline detection to adjustable crowd force and faster leveling. TR Series add-ons let you equip the rig around your applications, crews, and jobsites.

Downhole Camera

Real time visibility into downhole conditions, casing advancement, and hole stability.

People Detection System

AI-assisted in-cab displays alert the operator if people are present in the configurable safe zones.

Overhead Powerline Detection

Safety system used to detect proximity to energized high-voltage power lines.

Return To Level

Leveling within 0.5 degrees for faster and more precise rig setup.

Variable Crowd

Allows operators to dial in and maintain the optimal downforce in hard rock, ensuring a steady penetration rate while preventing tool stalling or glazing.

Reaction Jack

Add-on jack that maximizes effective crowd while helping keep the rig plumb.

Don’t see the capability you need?
Let’s talk about what the job calls for

TR-R Series

Drill Rigs

Built for rock-heavy work where stability and consistency matter.

For demanding hard-rock drilling, the TR-Rock configuration – available on the TR60-TR300 – combines
Round Locking Kely Bars + Variable Crowd + Rotary Slow + Drill Lock + Reaction Jack.
Together, these features provide the control, stability, and downforce needed to keep the tool productive and the rig steady.

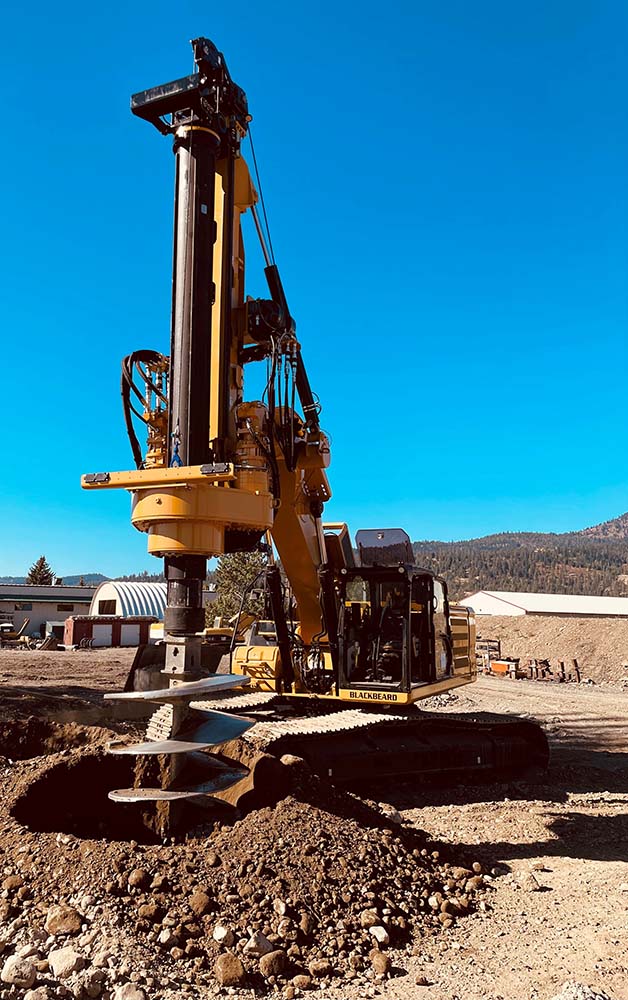

TR-R 95 Bay Shore Rock Rig 2-carousel
TR-R 150 Bay Shore Rock Rig-carousel
TR-R 95 Bay Shore Rock Rig-carousel

What Makes It Rock-Ready

  • Reaction Jack — Locks the rig in place during drilling to cut vibration and keep the mast plumb, so more of your crowd and torque go straight into the hole.
  • Round Locking Kelly Bar — Heavy-duty locking bar built for hard rock that transfers torque reliably and keeps the kelly engaged under high load.
  • Variable Crowd — Allows operators to dial in and maintain the optimal downforce in hard rock, ensuring a steady penetration rate while preventing tool stalling or glazing.
  • Rotary Slow — Delivers full torque at lower RPMs for superior control in rock and mixed formations–extending bit life and keeping the tool productive.
  • Drill Lock — A rotary cruise control feature that maintains consistent speed in hard rock, ensuring steady penetration rates once the operator finds where the tool is cutting best.

Smart Controls.

Real-Time Results.

Integrated control systems give operators clear feedback and responsive control to maintain consistent drilling performance. Designed for real jobsite conditions, these controls help reduce operator fatigue while improving accuracy and efficiency throughout the drilling cycle.

Seamless Operation

The EOH system unifies excavator and drill head functions so operators stay focused on drilling.

Touchscreen Adjustments

Tune torque, crowd force, and rotary speed on the fly to match changing ground conditions instantly.

Faster Fixes

Built-in diagnostics cut troubleshooting time from days to hours.

Operator Insight

Track run hours from the cab to support better maintenance planning and operator accountability.

Carrier Ready

Fully compatible with the latest EOH excavators—so you get the rig you want, on the machine you choose.

Industries recommended FOR THE TR SERIES RIG

learn more

Construction
& Infrastructure

Power
& Transmission

Utility

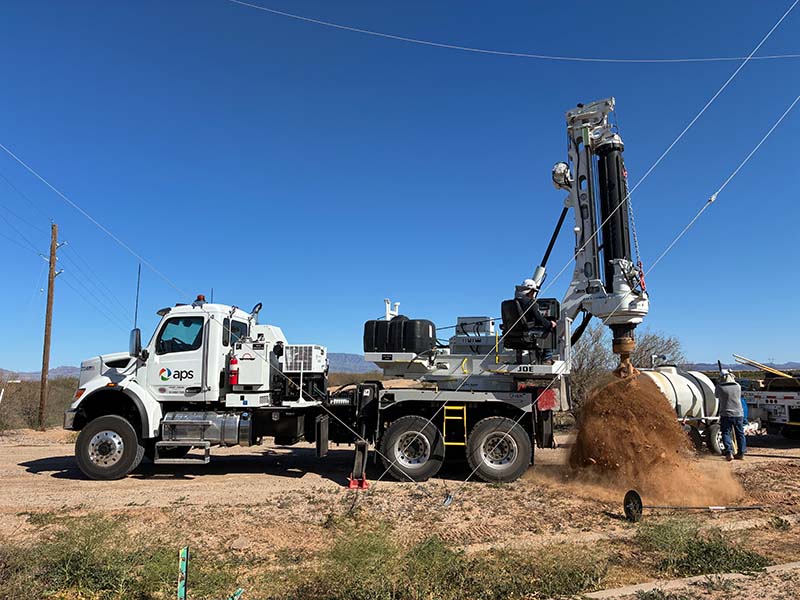

“I just purchased a TR50 truck rig. Having a truck mounted drill rig in my fleet will greatly add to my drilling capability and I know I can count on Bay Shore Systems to stand beside me and their equipment.”
Steve UsherwoodSouthwest Concrete Construction
“Our new TR Rig is the perfect combination of power and versatility. Transport and setup is efficient and economical. Paired with Bay Shore Systems Immediate and always available technical support, it’s tough to beat.”
Andy ShortenGreg Bair Track Hoe Service

Ready to build your TR rig?

Talk to our experts to see how the TR Series fits your next job.
